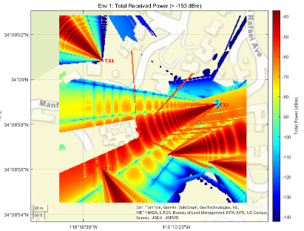

Wireless Coverage Simulator
A MATLAB-based ray-tracing toolkit for coverage prediction, trajectory simulation, and dataset generation.
Core Capabilities
End-to-end workflow for building, simulating, and exporting wireless coverage datasets.

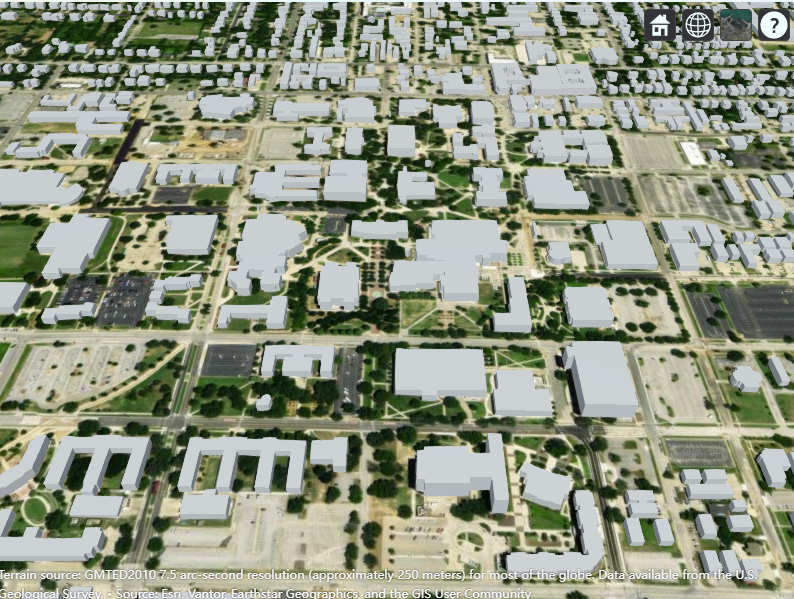

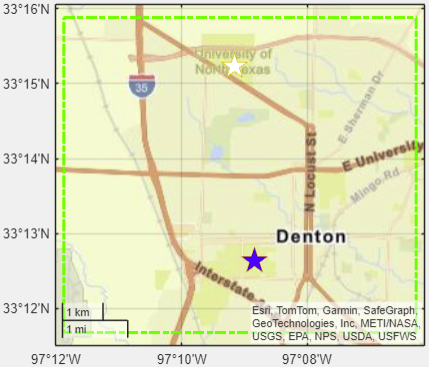

Scene & Map View
Unified basemap canvas with target region framing and 3D context.
View details ->

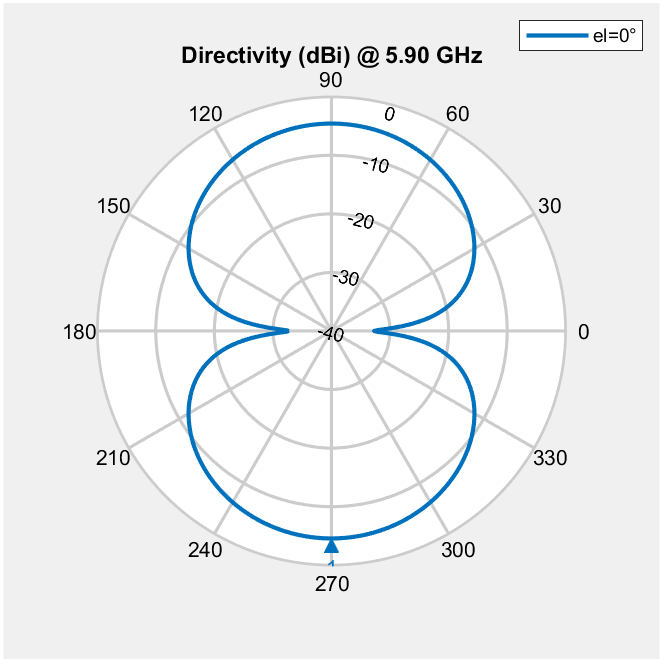

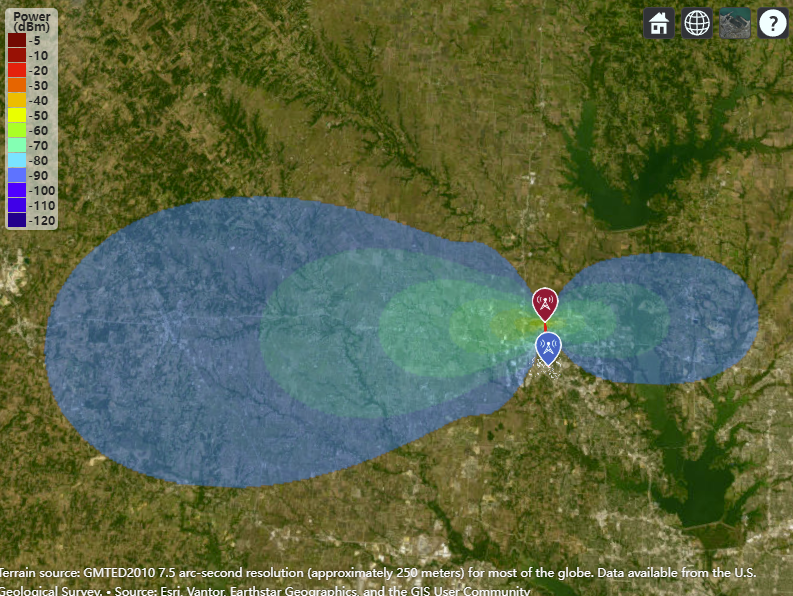

Directional Pattern Control
Visualize and adjust antenna tilt, orientation, and directivity patterns.
View details ->

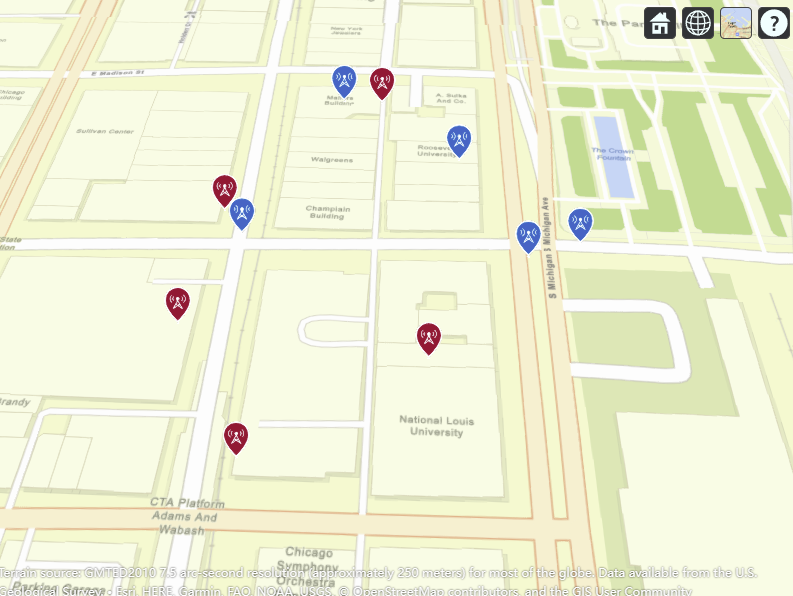

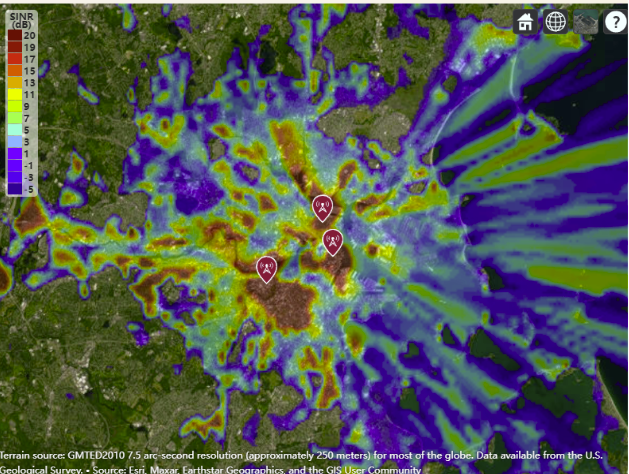

Transmitter and receiver sites view
Display transmitter sites, receiver sites, and RF propagation visualizations.
View details ->

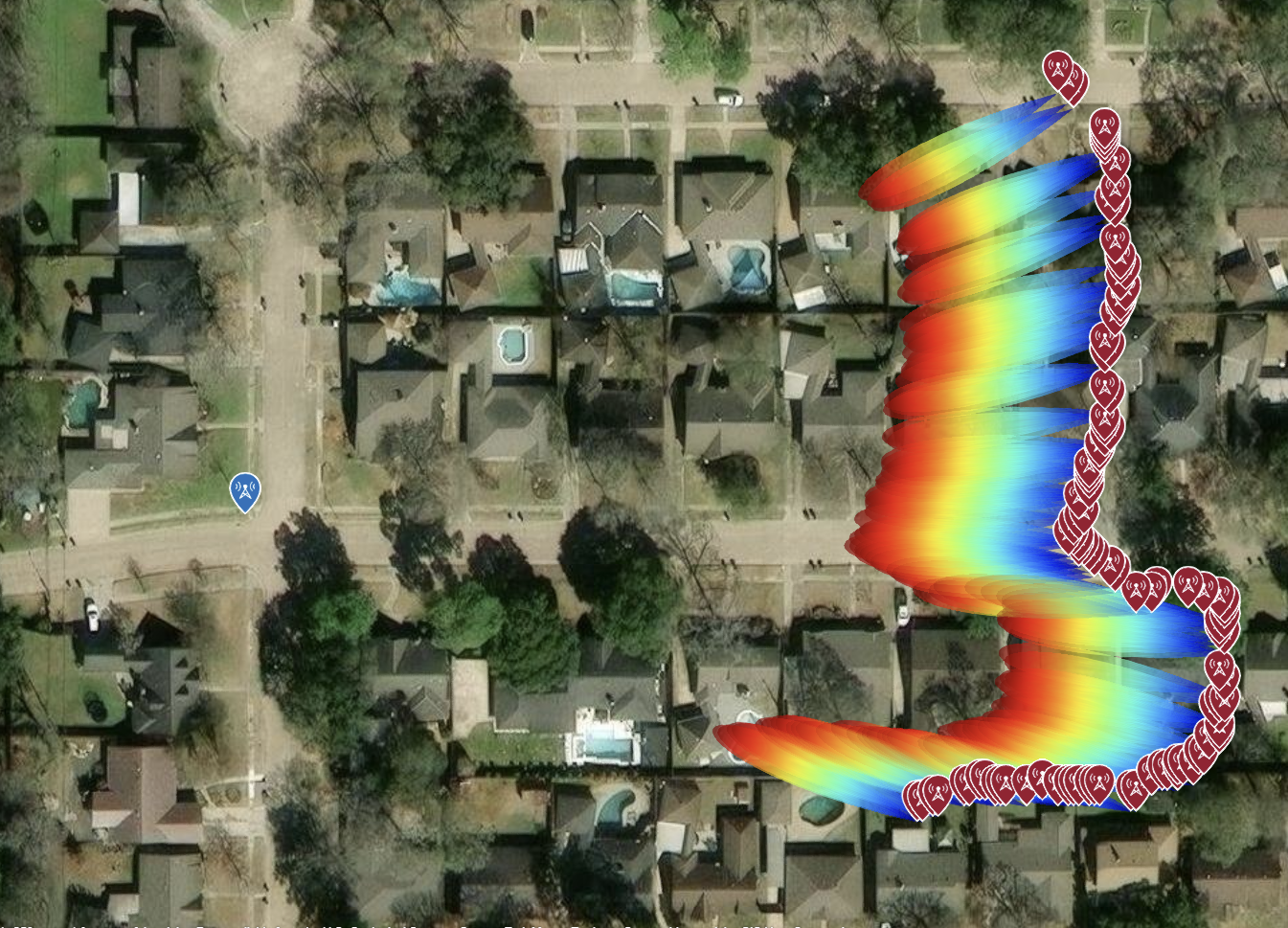

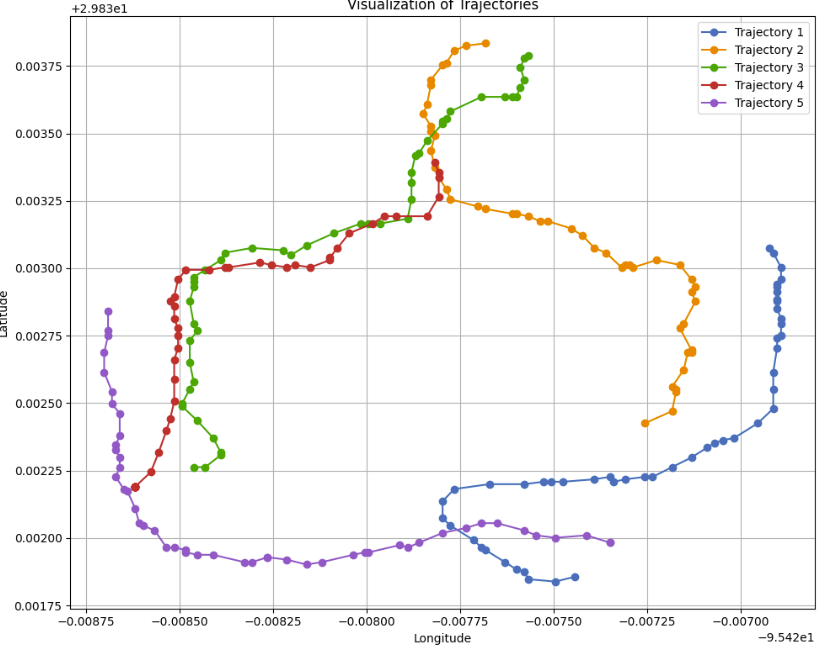

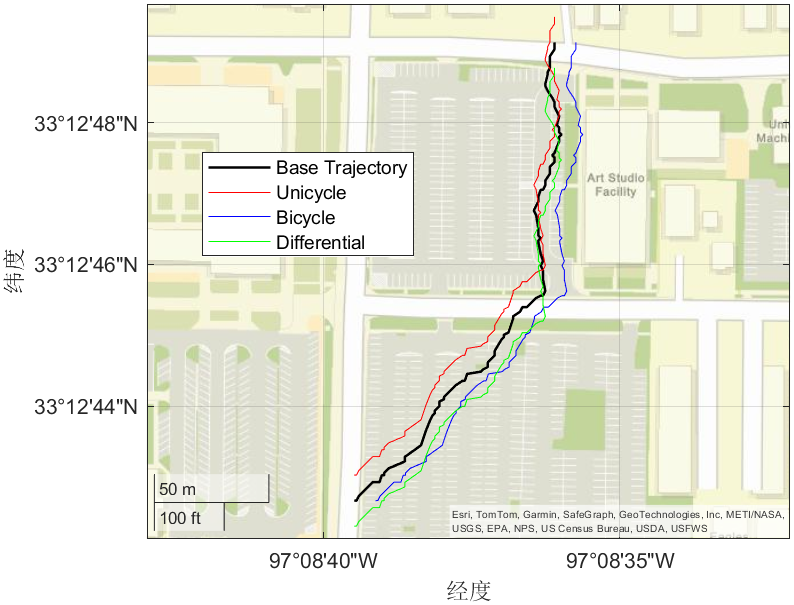

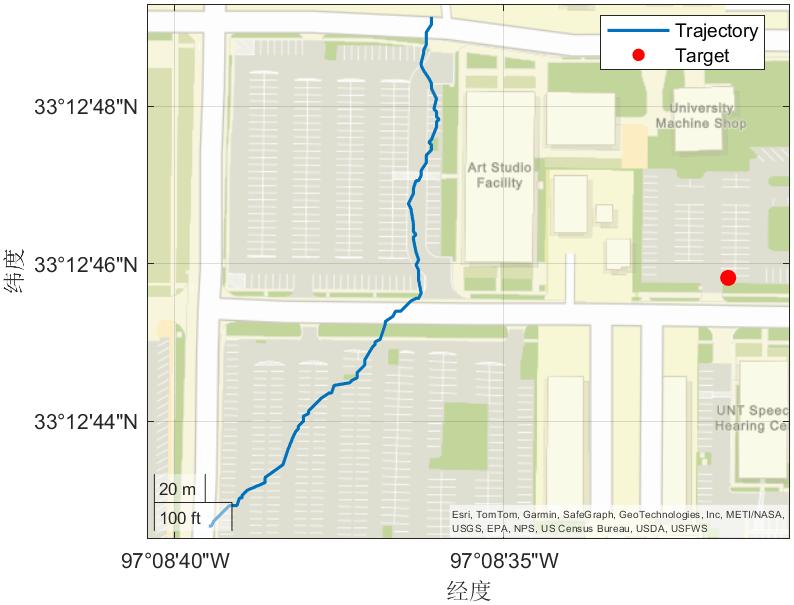

Path & Motion Simulation
Generate synthetic trajectories.
View details ->

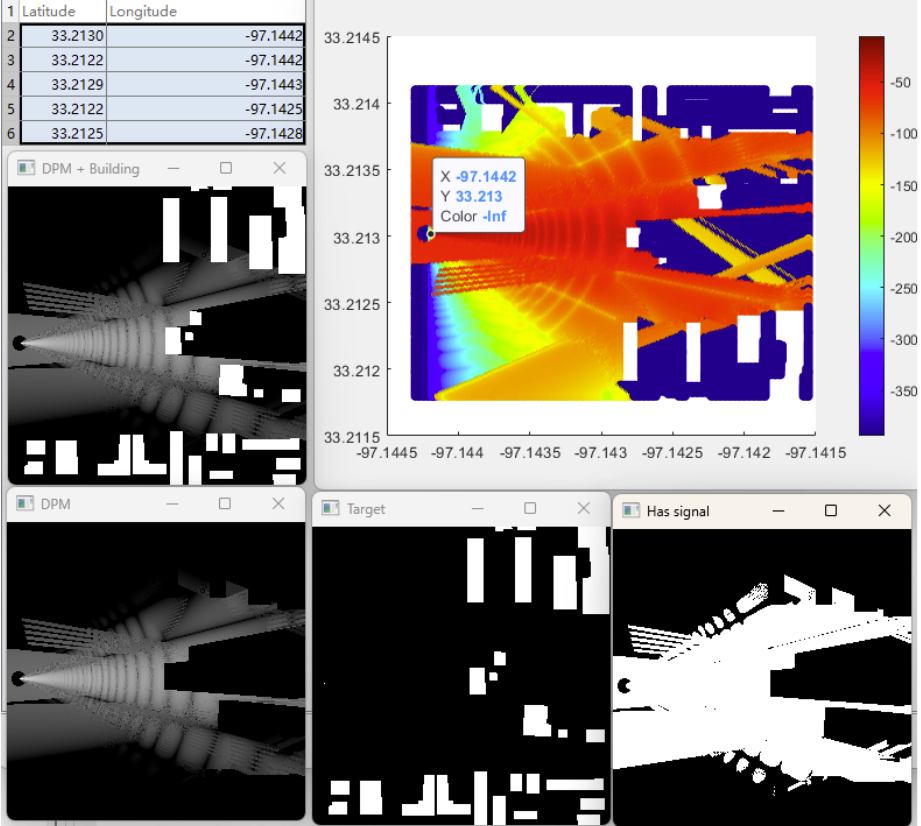

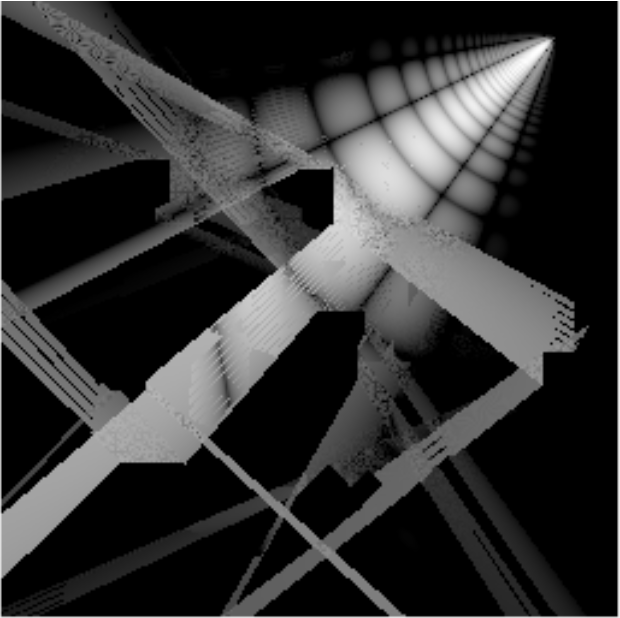

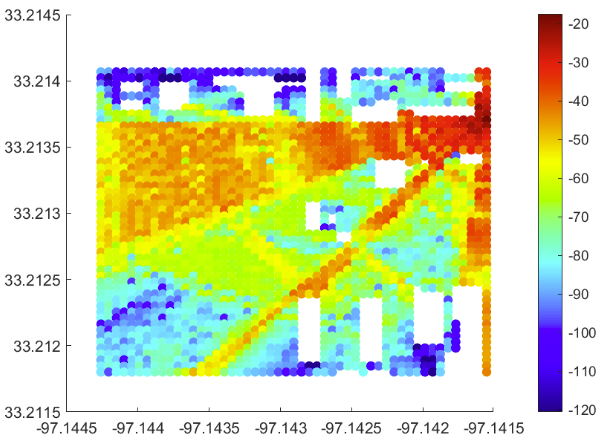

Ray-Tracing Coverage Maps
Generate high-resolution signal heatmaps for custom regions and terrain.
View details ->
Simulation

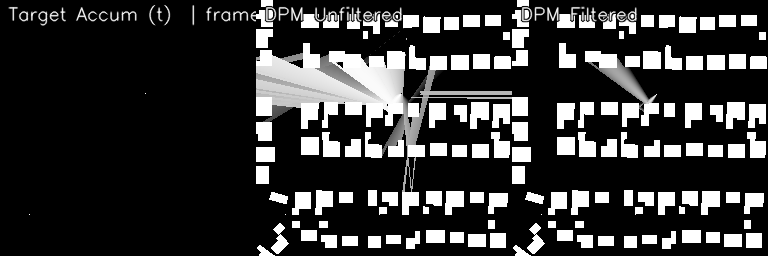

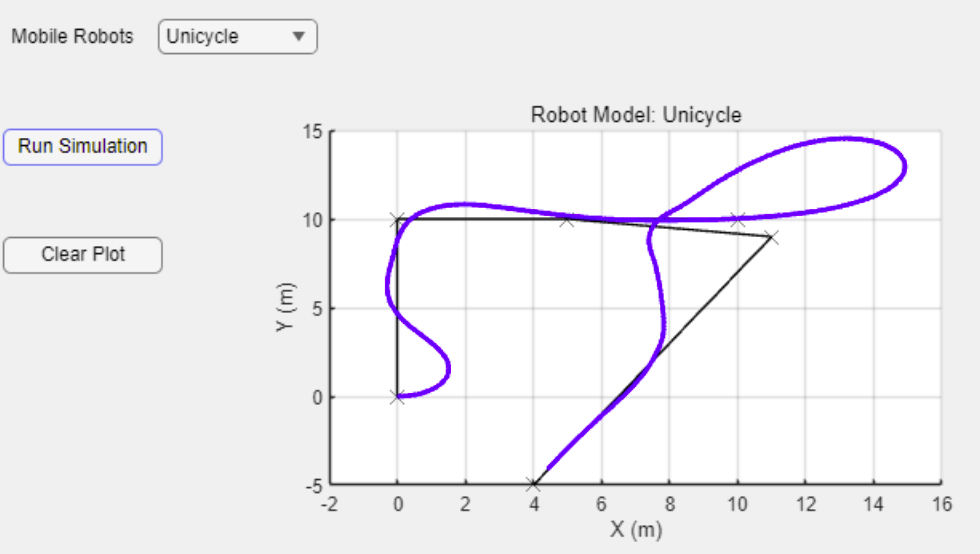

Trajectory Simulation
Animated simulation preview for trajectory-based scenarios.
View details ->Workflow Snapshot
From region setup to batch export in four steps.
Define Region
Set NW/NE/SW bounds, basemap, and initialize the map scene.
View details ->Deploy Sites
Add Tx/Rx sites manually, by file upload, or randomized grid selection.
View details ->Simulate
Run directivity, heatmap, trajectory, and signal-along-path simulations.
View details ->Export
Save site files, trajectory files, and region-level signal map datasets.
View details ->Launch
Start single simulations or quick experiments.
